17 11 150 Remove, fit/replace additional oil cooler (N55)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- REMOVE the right front section of the wheel arch cover.
WARNING:
Risk of scalding!
Only perform this repair work after engine has cooled down.
Only perform this repair work after engine has cooled down.
IMPORTANT:
Wear safety goggles and protective gloves.
Recycling:
Engine oil escapes when engine oil pipes are released. Collect any escaping engine oil using a suitable vessel and dispose of it.
Observe country-specific waste disposal regulations.

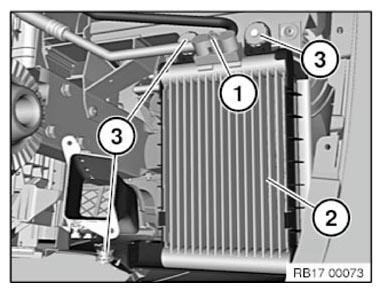

Release screw (1).
Tightening torque: 17 22 7AZ .
Remove engine oil pipe from engine oil cooler flange.
Replace sealing rings.
Release screws (3).
Tightening torque: 17 22 8AZ .
Catch and dispose of emerging oil.
Remove engine oil cooler (2).
NOTE:
After having completed repair work, check engine oil level, if necessary top up.
