16 19 090 Removing and installing/replacing SCR delivery module
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.
IMPORTANT:
Maintain conditions of absolute cleanliness.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning.
Close connections and lines!
Thoroughly clean special tool with water after each use.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning.
Close connections and lines!
Thoroughly clean special tool with water after each use.
Necessary preliminary work:
- Draw off the SCR ACTIVE TANK .
- Remove REAR RIGHT UNDERBODY PANELLING .
- Remove rear right heat shield.
Removal:

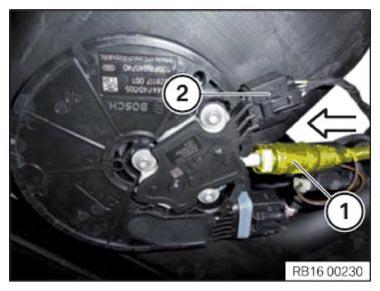

Unlock snap fastener (1) and pull off feed line.
Disconnect plug connection (2).

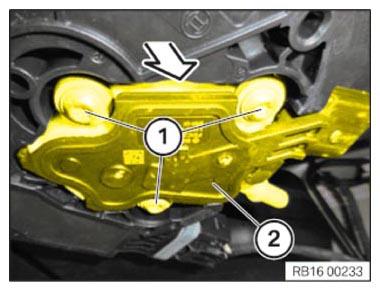

Release the screws (1) and remove the SCR delivery module (2) through the bottom.
Installation:
Install the SCR delivery module (2).
Insert screws (1) and tighten.

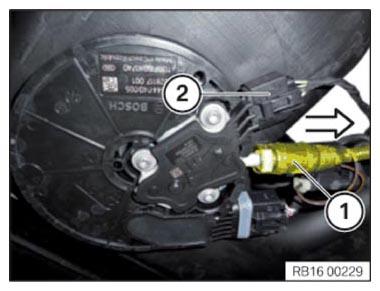

Position the feed line and latch the snap fastener (1).
Connect plug connection (2).
NOTE:
Check correct engagement of snap fastener (1) by attempting to pull.
Required follow-up work:
- Fill the SCR RESERVOIR .
- Install the rear right underbody panelling.
- Remove rear right heat shield.
