34 41 295 Removing and installing control unit for parking brake

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

Necessary preliminary work:

Raise luggage compartment floor trim.

Disconnect plug connection (1) and remove control unit (2).

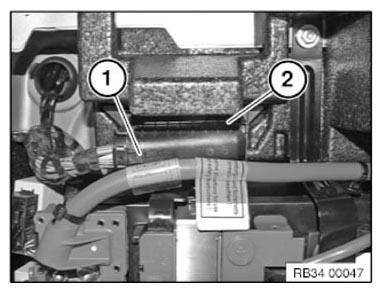

Fig 1: Identifying Control Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/encoding of control units.
