34 33 071 Replacing vacuum hose for brake booster (petrol)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Read and comply with GENERAL INFORMATION .
- Remove left TRAILING LINK .
- REMOVE left partition wall for units compartment.
IMPORTANT:
Before beginning repair work, fully press the brake pedal several times to reduce the vacuum pressure in the brake servo.

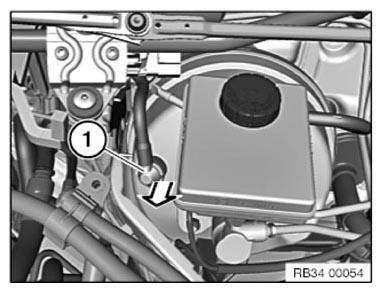

Pull non-return valve (1) in direction of arrow out of brake booster.
Installation note:
Check seal in brake booster and replace if necessary.
Disconnect snap fastener (1) and feed out vacuum line (2).
Installation note:
Make sure that snap fastener (1) is correctly engaged.
