61 11... Installing repair cable for reversing camera
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .
NOTE:
Work is shown by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.
Remove trim panels.

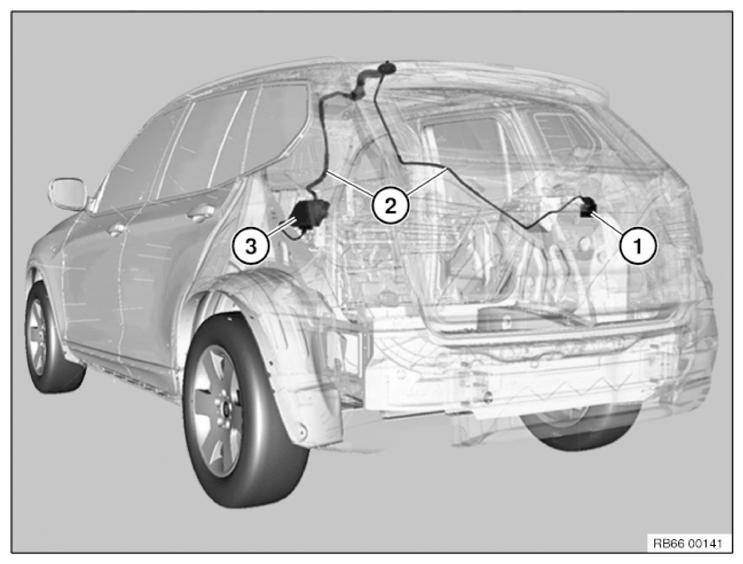

Lay repair cable from reversing camera (1) along wiring harness (2) up to TRSVC control unit (3, middle slot) and secure sufficiently.
After successful completion of function check , detach start and end of faulty cable at first mounting point.
