61 62 150 Removing and installing/replacing rear window washer pump for rear window washer unit
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Release FLUID RESERVOIR FOR WINDSCREEN WASHER SYSTEM and pull out.

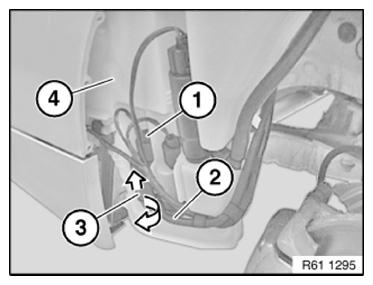

Disconnect plug connection (1).
Detach hose pipe (2) from washer pump for rear window washer unit (3).
Turn washer pump for rear window washer system (3) if necessary and pull in direction of arrow out of fluid reservoir for windscreen washer system (4).
Installation note:
- Replace strainer of washer pump for rear window washer unit
- Coat sealing ring of washer pump for rear window washer unit with lubricant
- Lay hose of washer pump for rear window washer unit without kinks
- Fill fluid reservoir
