61 31 362 Removing and installing (replacing) wireless remote control

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work:

Lower HEADLINING .

Removal:

Unfasten plug connection (1) and disconnect.

Release expanding rivet (2) and remove control unit (3).

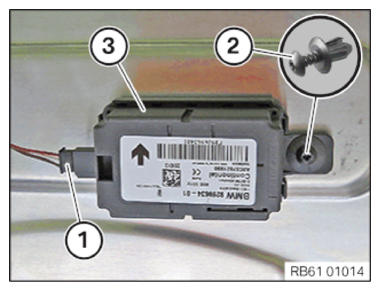

Fig 1: Identifying Control Unit Expanding Rivet

G09949529

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Position control unit (3) so that positioning pin on rear side engages in associated bore hole.

Insert control unit (3) and fasten with expanding rivet (2).

Connect the plug (1).

Fig 2: Identifying Control Unit Expanding Rivet

G09949529

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .

Required follow-up work:

Disconnect battery earth lead
