61 31 334 Removing and installing or replacing grip cover for gear selector switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

Carefully unclip cover (1) from gear selector switch (3) using special tool 00 9 322 at points (2) and remove in direction of arrow.

Fig 1: Removing Gear Selector Switch Cover Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanism (1) must not be damaged or missing.

Fig 2: Identifying Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

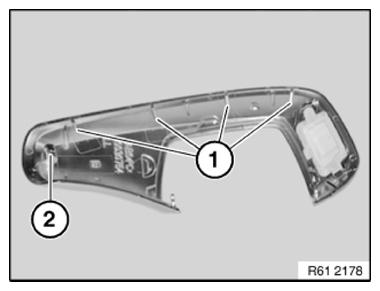

Latch mechanism (1) and guide (2) must not be damaged or missing.

Fig 3: Identifying Latch Mechanism And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
