61 31 008 Removing and installing steering column switch cluster

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work.
Do not under any circumstances turn the steering column switch cluster when the steering wheel is removed.

Necessary preliminary work:

Remove steering wheel . See 32 33 000 REMOVING AND INSTALLING/REPLACING STEERING WHEEL or 32 33 010 REMOVING AND INSTALLING/REPLACING SPORT STEERING WHEEL .
REMOVE LOWER SECTION OF STEERING COLUMN TRIM .

Removal:

Unfasten screws (2).

Remove steering column switch cluster (1) in direction of arrow.

Fig 1: Removing/Installing Steering Column Switch Cluster

G09949538

Courtesy of BMW OF NORTH AMERICA, INC.

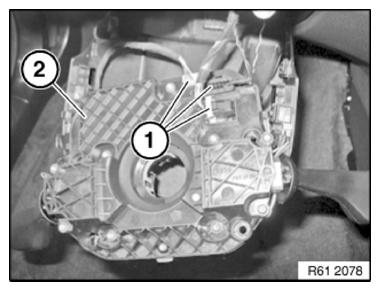

Disconnect plug connection (1).

Remove steering column switch cluster (2).

Fig 2: Identifying Steering Column Switch Cluster Plug Connection

G09949539

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect the plug (1).

Fig 3: Identifying Steering Column Switch Cluster Plug Connection

G06895018

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check zero position of clock spring on steering column switch cluster.

Zero position is correct only when yellow mark (1) is clearly visible!

Fig 4: Identifying Clock Springs On Steering Column Switch Cluster

G09947071

Courtesy of BMW OF NORTH AMERICA, INC.

Install steering column switch cluster (3) in direction of arrow.

Tighten down screws (2).

Tightening torque 61 31 3AZ .

Fig 5: Removing/Installing Steering Column Switch Cluster

G09949538

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .

Required follow-up work:

Install steering wheel . See 32 34 020 REMOVING AND INSTALLING/REPLACING AIRBAG UNIT or 32 33 010 REMOVING AND INSTALLING/REPLACING SPORT STEERING WHEEL .
INSTALL STEERING COLUMN SHROUD LOWER SECTION .
