61 35 953 Removing and installing/replacing interior aerial for Comfort Access (front storage compartment)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Partially remove CENTER CONSOLE .

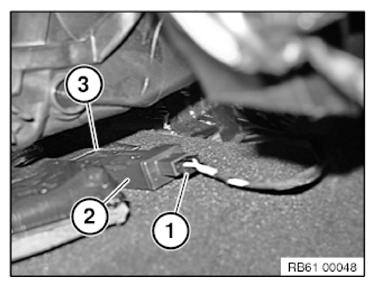

Disconnect plug connection (1).
Pull interior aerial for Comfort Access (2) out from loop (3).
Installation note:
Make sure interior aerial for Comfort Access (2) is fitted correctly.
