33 41 151 Replacing left or right wheel bearing on rear axle shaft

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove DRIVE FLANGE FOR OUTPUT SHAFT .

Release screws (1).

Tightening torque 33 41 2AZ .

Remove wheel bearing.

Installation note:

Replace screws.

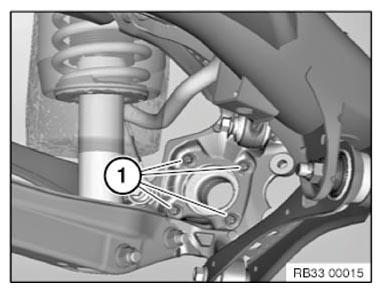

Fig 1: Identifying Wheel Bearing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep contact surface (2) of wheel bearing/wheel carrier clean and free from oil and grease.

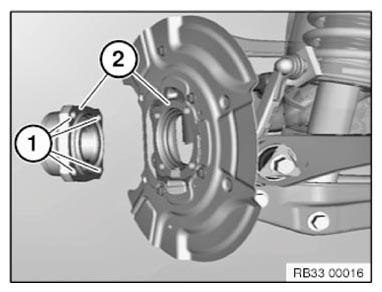

Fig 2: Identifying Contact Surface Of Wheel Bearing/Wheel Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
