33 55 041 Replacing anti-roll bar link for anti-roll bar on left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Release nuts (1); if necessary, grip at inner Torx socket.

Tightening torque 33 55 2AZ .

Release screw (2).

Tightening torque 33 55 4AZ .

Remove anti-roll bar link (3).

Installation note:

Replace self-locking nut and screw.

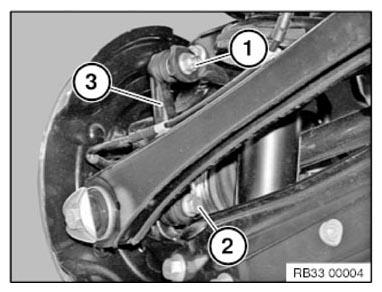

Fig 1: Identifying Anti-Roll Bar Link, Screws, Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
