33 32 190 Removing and installing/replacing left or right camber arm

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

If the camber arm is bent, the control arm/wheel carrier screw connection must be renewed.

NOTE: If the camber arm is renewed, the wheel alignment . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD must be checked after assembly.

Necessary preliminary work:

Remove REAR WHEEL .

Support wheel carrier with workshop jack!

Mark position of eccentric adjustment washer to rear axle support to simplify subsequent adjustment of rear axle.

Release nut (1) and remove eccentric bolt.

Tightening torque 33 32 10AZ .

Installation note:

Note insertion direction of eccentric screw.

Renew nut, eccentric bolt.

Tighten down screw connection in NORMAL POSITION .

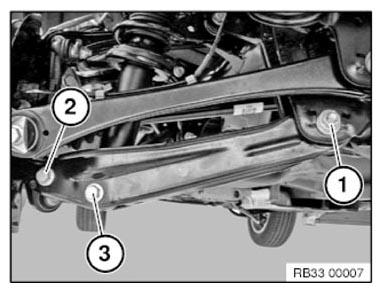

Fig 1: Supporting Wheel Carrier With Workshop Jack

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (2) and remove screw.

Tightening torque 33 32 9AZ .

Installation note:

Note direction of insertion of screw.

Replace screw and nut.

Release nut (3) and remove screw.

Tightening torque 33 52 5AZ .

Installation note:

Note direction of insertion of bolts.

Replace screw and nut.

After installation:

Carry out wheel alignment procedure . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
