33 32 021 Replacing left or right trailing arm
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
- The trailing arm must be installed with the opening (U-section) facing downward!
- If the trailing arm is bent, the control arm/wheel carrier screw connection must be renewed.
Necessary preliminary work:
- Only on left side at ride height sensor: Release JOINTED ROD AT TRAILING ARM .

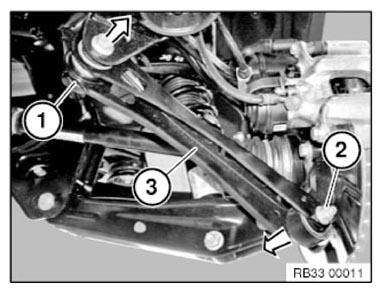

Unscrew nuts (1).
Tightening torque 33 32 1AZ .
Pull out bolt towards front.
Installation note:
Note direction of insertion of bolts.
Replace screw and nut.
Tighten down screw connection in NORMAL POSITION .
Slacken nut (2).
Tightening torque 33 32 2AZ .
Move screws toward the rear.
Remove trailing arm (3) downward.
Installation note:
The trailing arm must be installed with the opening (U-section) facing downward!
Note direction of insertion of screw.
Replace screw and nut.
Tighten down screw connection in NORMAL POSITION .
