33 33 001 Replacing left or right rear axle support compression strut
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe safety information for raising the vehicle
Driving without compression struts is not permitted!
Risk of damage!
The rear axle support must be supported at the front if both compression struts need to be replaced.
Driving without compression struts is not permitted!
Risk of damage!
The rear axle support must be supported at the front if both compression struts need to be replaced.

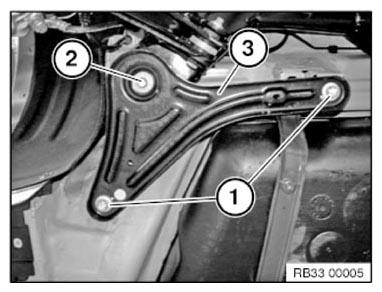

Release screws (1).
Tightening torque 33 33 2AZ
Release screw (2).
Tightening torque 33 33 1AZ
Installation note:
Replace screw.
Remove compression strut (3).
Installation note:
Check threads for damage; if necessary, repair with HELICOIL THREAD INSERTS .
Turn in all screws, first tightening screws (2) and then tightening screws (1).
