31 00... Front axle + steering: wheel alignment check must be carried out after the following work
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
A WHEEL ALIGNMENT CHECK must be carried out after the following work:
Release the following screw connections:
- Steering box to front axle support
- Lower wishbone to front axle support
- Track rod end to track rod

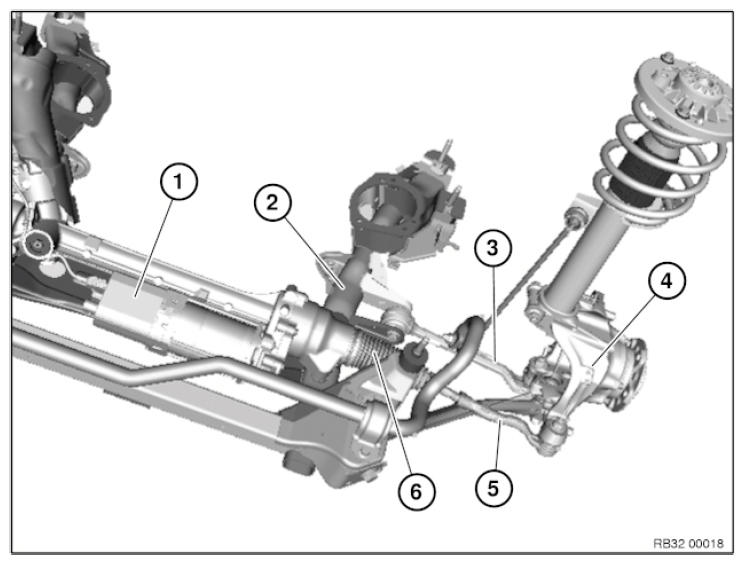

Replace the following components:
- Steering box (1)
- Front axle support (2)
- Wishbone, bottom (3)
- Swivel bearing (4)
- Track rod end (5)
- Track rod (6)
