13 62 535 Replacing charging pressure sensor (N47 D20 O1)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove INTAKE FILTER HOUSING .

Release connector (1) and remove.

Release screw (2).

Tightening torque: 13 62 5AZ .

Remove charging pressure sensor (3).

Installation note:

Check sealing ring of charging pressure sensor and replace if damaged.

Prior to installation, apply a thin coat of lubricant to sealing ring of charging pressure sensor.

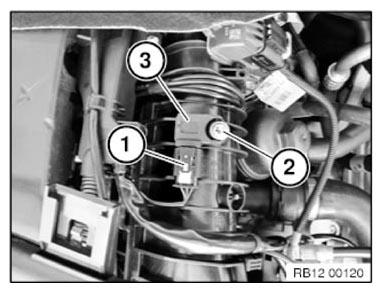

Fig 1: Identifying Connector, Screw And Charging Pressure Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Delete fault memory.
