Install the charging socket flap

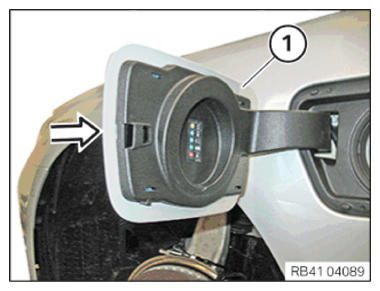

Slide the charging socket flap (1) onto the hinge until you can hear the lock engage.
Close the charging socket flap (1).

G14227171

Courtesy of BMW OF NORTH AMERICA, INC.
