Installing the rear wheel arch cover
NOTE:

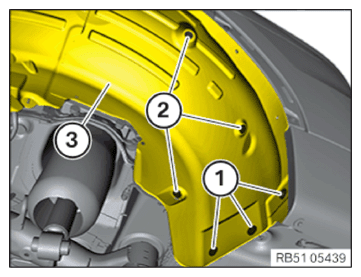

To provide a better overview: Schematic diagram with partially hidden components.
- Guide the wheel arch cover (3) in.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) | ||
| Thermoplastic hexagon screw | Tightening torque | 3 Nm |
- Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (nuts) | ||
| Plastic nut | Tightening torque | 2.6 Nm |

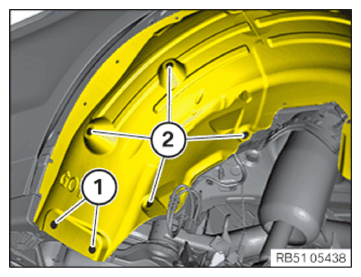

- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) | ||
| Thermoplastic hexagon screw | Tightening torque | 3 Nm |
- Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (nuts) | ||
| Plastic nut | Tightening torque | 2.6 Nm |
Follow-up work
