Install the actuator on the left hood hinge
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

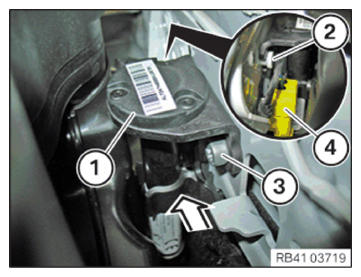

- Feed in the actuator (1) at the guide pin (2) and slide to the back in arrow direction up to the stop.
- Replace the screw (3).
Parts: Screw
- Tighten down screw (3).TIGHTENING TORQUES SPECIFICATION
Actuator to engine compartment lid hinge M6x12
Replace screw.Tightening torque 8 Nm - Connect connectors (4) and lock.
Follow-up work
- Install windshield panel COVER .
- Install left and right WIPER ARM .
- Install the rear left engine compartment COVER .
- Install the rear right engine compartment COVER .
- Reconnect all battery GROUND LEADS .
- Activate the 48 v ELECTRICAL SYSTEM .
