Install the rear outer door handle

Install the outside door handle (2).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

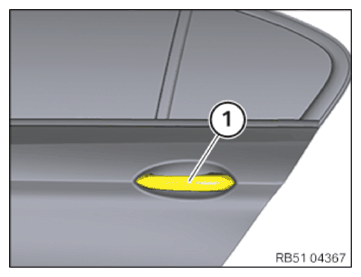

Insert the front external door handle (1).
Insert the rear outside door handle (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the clamping bolt (1) on the outside door handle support with the special tool 2 450 364 .

TIGHTENING TORQUES SPECIFICATION

Clamping bolt for door handle
Screw	Tightening torque	2 Nm
