Installing the model inscription
NOTE:
TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For ADDITIONAL INFORMATION see: 51 00... Notes on component bonding with adhesive tape
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For ADDITIONAL INFORMATION see: 51 00... Notes on component bonding with adhesive tape
CAUTION:
Laser beam.
Injury hazard!
Injury hazard!
- Do not look into the laser beam.
- Park the vehicle and the special tool 2 407 566 on a flat and even surface.

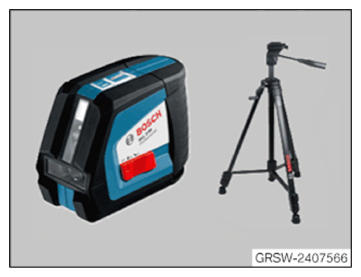

- Mount the laser on the tripod.
- Switch on laser (Position without automatic level).
- Activate laser horizontally and vertically.
- Position the tool behind the vehicle.

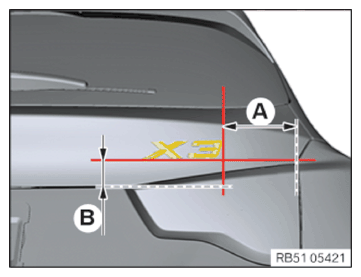

Align the vertical laser beam at the edge of the trunk lid with dimension (A=14, 0 cm).
Align the horizontal laser beam at the edge of the trunk lid with dimension (B=5, 0 cm).
- Remove adhesive residue and clean the bonding surface with solvent cleaner R2.
- Detach the liner (protective film) from the adhesive strip of the model inscription.
- Align the model inscription on the laser beam and press onto the trunk lid.
