41 62 Tailgate
>>
41 62 540 Removing And Installing/Replacing Both Tailgate Hinges (X3)
>>
Remove Right Tailgate Hinge
Remove Right Tailgate Hinge

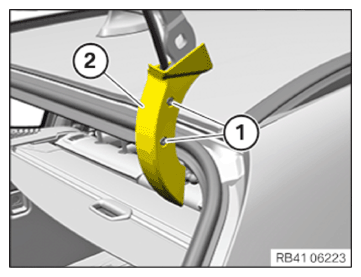

Loosen screws (1).
Release the hinge cover (2) and set aside.
Courtesy of BMW OF NORTH AMERICA, INC.

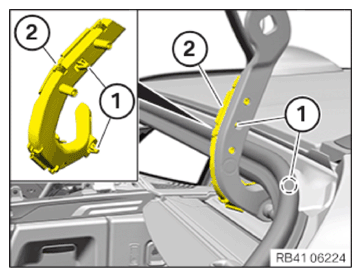

Loosen the clips (1).
Remove the holder (2) for the vehicle wiring harness from the hinge arm and place aside with the vehicle wiring harness.
Courtesy of BMW OF NORTH AMERICA, INC.

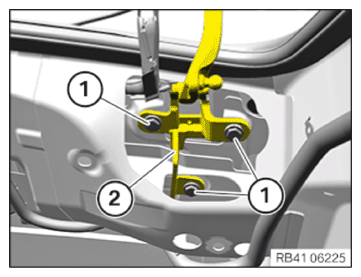

Release the screws (1) and remove the tailgate hinge (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
