Installing Left Tailgate Hinge

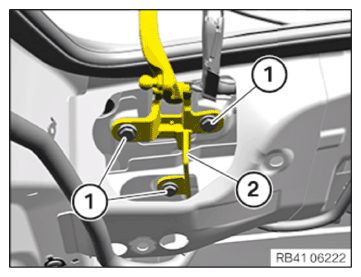

(2) Place tailgate hinge.

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Tailgate hinge to body
M8 screw
	tightening torque
	19 Nm

G14301037

Courtesy of BMW OF NORTH AMERICA, INC.

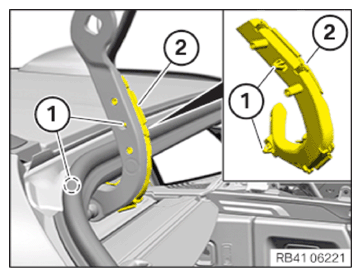

Position holder (2) for wiring harness on the hinge arm.
Attach clips (1) to hinge arm.

Courtesy of BMW OF NORTH AMERICA, INC.

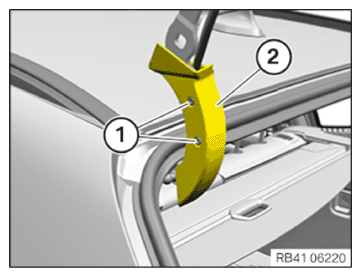

Position hinge cover (2) on hinge arm.

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Hinge cover
Screw
	tightening torque
	1.4 Nm

G14301035

Courtesy of BMW OF NORTH AMERICA, INC.
