Adjusting Rear Lid Lock

NOTE: TECHNICAL INFORMATION
Notes for the gap dimensions of the body form the basis of this REP and it is mandatory to observe them.
For additional information see: BODY DIMENSIONS .

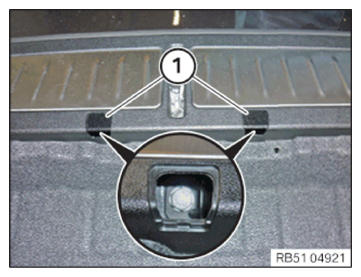

Lever out the covers (1) with a suitable tool.
Slacken the screws underneath it until the tailgate lock can be shifted.
Adjusting tailgate lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

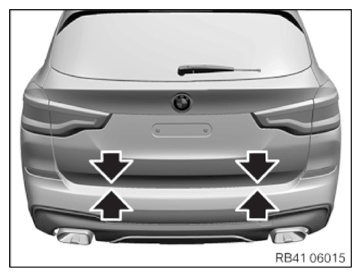

Check the gap dimensions (arrows) between the trunk lid and bumper cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Gap dimensions do not correspond to the specifications.

Measure
Adjust tailgate latch.

Tighten the screws.

TIGHTENING TORQUES SPECIFICATION

Tailgate lock to body
M8x20 screw
	Tightening torque
	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the covers (1).

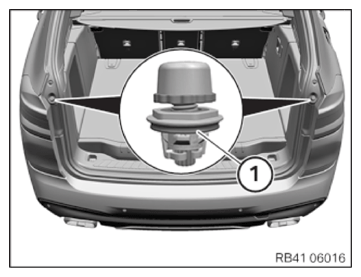

Adjust stop pad (1) by turning.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALL REAR SPOILER .
Refer to INSTALLING THE TAILGATE TRIM PANEL .
Refer to MOUNTING BOTH TRIMS FOR THE REAR WINDOW FRAME ON THE SIDE .
Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
Refer to INSTALLING BOTH TRUNK LID COVERS .
Refer to INSTALLING THE TRUNK LID LIGHT .
Refer to INSTALL THE POWER TAILGATE SWITCH .
