Prepare New Part

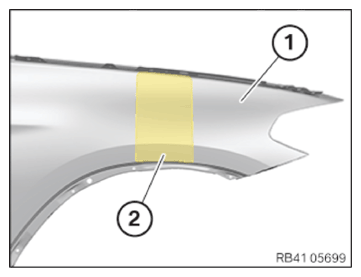

Coat the side panel (1) before painting in this area (2) using sealant D1.
Take the exact position of the sealant from the side panel to be replaced.
CONSUMABLE DESCRIPTION

Sealant D1 (seam sealing) 310 ml 83422409985
Paint side panel.

Courtesy of BMW OF NORTH AMERICA, INC.

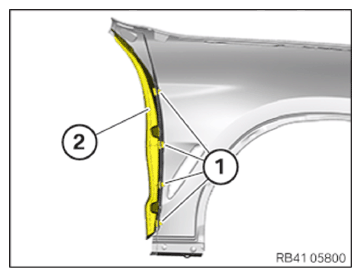

Release the detents (1) and remove the seal (2) from the side panel to be replaced.
Position the seal (2) on the new side panel and clip into the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.
