Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
For additional information see: 41 00... REPAIR TECHNIQUES, REPAIR STAGE 2 (X3) .
- Observe the procedure for repair stage 2.
For additional information see: 41 00... REPAIR TECHNIQUES, REPAIR STAGE 2 (X3) .
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
- Prepare the following new parts (see Electronic Parts Catalog (EPC)):

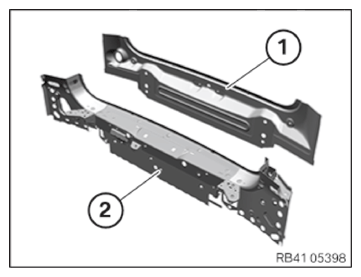

Tail cowling (1)
Rear inner trim panel (2)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) (X3) . - Supply the following consumables:
Material Quantity Adhesive K5 (195 ml) 1 Adhesive K5 (50 ml) 1 Blind rivet N3 70 Punch rivet N4 45 Cleaning agent R1 1 Cleaning agent R1 1 EMC screw 6 Sealant D1 Cavity sealing wax remover
