Installing The Tail Panel

• Do not apply adhesive to the body or to the new parts in the welding surface (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
  CONSUMABLE DESCRIPTION



  Cleaning agent R2

  500 ml

  83190417324

• Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
  CONSUMABLE DESCRIPTION



  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Apply adhesive K5 to bonding surfaces.
  ADHESIVE



  Body adhesive K5

  50 ml

  83192158654

  ADHESIVE



  Body adhesive K5

  195 ml

  83195A59935

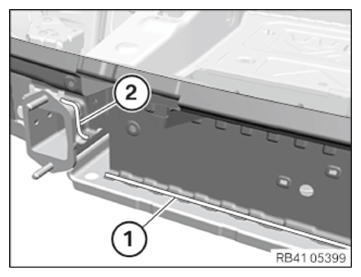

• Install the tail panel inner section and rivet with punch rivets N4 in area (1).
  CONSUMABLE DESCRIPTION



  Punch rivet N4  Ø 3 mm; 4 mm long

  83192457307

• Weld the new part in area (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

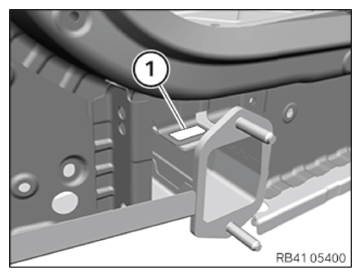

• Weld the new part in area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Rivet new parts in the areas (1) and (2) with blind rivets N3.
  CONSUMABLE DESCRIPTION



  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the tail panel outer section new part and rivet it in the areas (1) and (2) with blind rivets N3.
  CONSUMABLE DESCRIPTION



  Blind rivet N3 Ø 4 mm; clamping area 1-3 mm

  83190301421

  Courtesy of BMW OF NORTH AMERICA, INC.

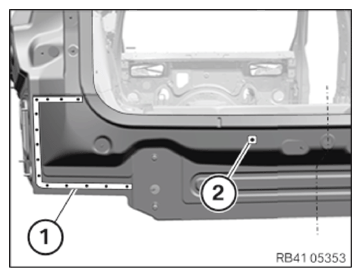

• Rivet the new parts in areas (1) and (2) with punch rivets N4.

  Area	Number
  1	7
  2	5

  CONSUMABLE DESCRIPTION



  Punch rivet N4  Ø 3 mm; 4 mm long

  83192457307

  Courtesy of BMW OF NORTH AMERICA, INC.

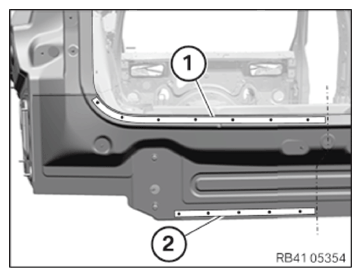

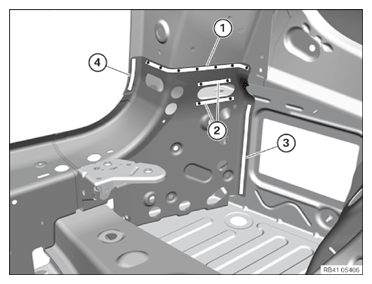

• Rivet new parts in the areas (1) and (2) with blind rivets N3.
  CONSUMABLE DESCRIPTION



  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

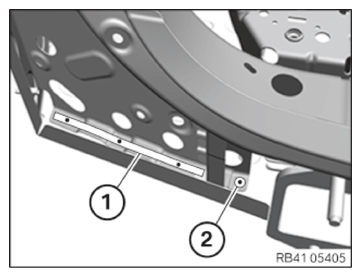

• Rivet the new part in area (3) with four blind rivets N4.
  CONSUMABLE DESCRIPTION



  Punch rivet N4  Ø 3 mm; 4 mm long

  83192457307

• Weld the new part in area (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

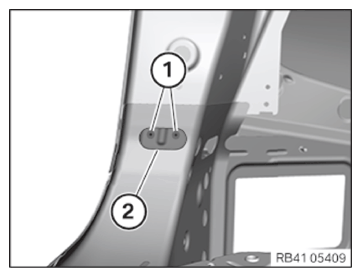

• Rivet the new part with blind rivet N3 (1) through the opening (2).
  CONSUMABLE DESCRIPTION



  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

  Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw

• Drill the hole with a diameter of 4.2 mm after the adhesive completely hardens.
• Screw in the EMC screw.
• Seal the EMC screw with the sealant.
  CONSUMABLE DESCRIPTION



  Sealant D1 (seam sealing)

  310 ml

  83422409985

  NOTE: TECHNICAL INFORMATION
  Avoid contact of the escaped adhesive with the support for the bumper cover. Do not use any cleaning agents containing solvents.

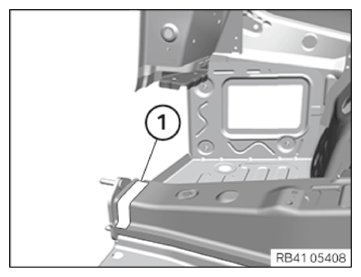

• Press in the tail cowling in area (1) and remove the emerging adhesive.
• Attach the support for bumper cover.

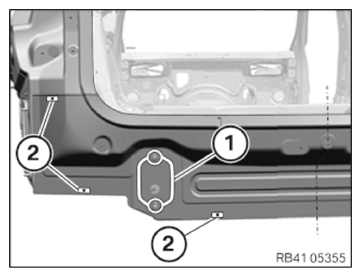

• After the adhesive has hardened, install 3 EMC screws in the areas (2) shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE DESCRIPTION



  screw  EMC screw, SF Plus, M5x15

  83190301639
