Supply The New Parts Required
NOTE:
DANGER
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS (X3 M40I, 2018-2019, X3 M40I, 2020-2021, X3 M40I, 2022, X3 SDRIVE 30I, 2018-2019, X3 SDRIVE 30I, 2020-2021, X3 SDRIVE 30I, 2022, X3 XDRIVE 30I, 2018-2019, X3 XDRIVE 30I, 2020-2021, X3 .
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS (X3 M40I, 2018-2019, X3 M40I, 2020-2021, X3 M40I, 2022, X3 SDRIVE 30I, 2018-2019, X3 SDRIVE 30I, 2020-2021, X3 SDRIVE 30I, 2022, X3 XDRIVE 30I, 2018-2019, X3 XDRIVE 30I, 2020-2021, X3 .
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... REPAIR TECHNIQUES, REPAIR STAGE 3 (X3) .
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
- Refer to REMOVE FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON RIGHT .
- Refer to DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECK THAT NO VOLTAGE IS APPLIED .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Supply the following new parts:

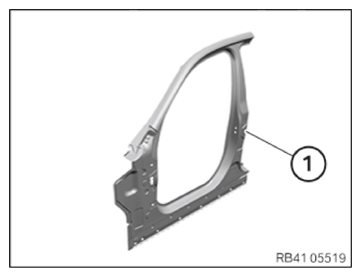

A-pillar, outer part (1)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) (X3) . - Supply the following consumables:
| Material | Quantity |
|---|---|
| T-bolt | 5 |
| Sealant D1 |
