Supplying The New Parts Required
NOTE:
DANGER
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 2.
For additional information see: 41 00... REPAIR TECHNIQUES, REPAIR STAGE 2 (X3) .
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
- Refer to REMOVE FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON RIGHT .
- Refer to DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECK THAT NO VOLTAGE IS APPLIED .
- Prepare the following new parts (see Electronic Parts Catalog [EPC]):

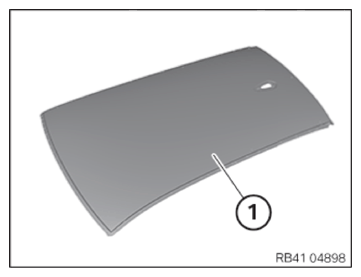

Roof outer skin (1)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) (X3) . - Supply the following consumables:
Material Quantity Adhesive K5 (195 ml) 2 Punch rivet N5 25 T-bolt 30 Cleaning agent R1 1 Cleaning agent R2 1 EMC screw 2 Sealing compound D1 1 Sealing compound D2 1 NOTE: TECHNICAL INFORMATION
Store adhesive at room temperature.
Adhere to adhesive processing temperature of 15 - 28°C without fail.
Before installation: Store roof outer skin and vehicle for at least 12 hours at room temperature (17°C to 35°C). - Tools also required:
Roof pliers set, order number: 81 43 2 158 707
See bottom Aftersales Assistance Portal (ASAP), workshop equipment service/technology - Start BMW
Or at: www.bmwgroup-wep.com
- Provide additionally required materials from workshop resources: 6 x screws (M6 x 20), 6 x nuts (M6), 12 x washers.
