Installing The Roof Outer Skin

• Pre-clean the bonding surfaces (1) on the vehicle and the new part with cleaning agent R2.
  CONSUMABLE DESCRIPTION



  Cleaning agent R2

  500 ml

  83190417324

• Clean the bonding surfaces (1) on the vehicle and the new part with cleaning agent R1.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE DESCRIPTION



  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Pre-clean the bonding surfaces (1) on the vehicle and the new part with cleaning agent R2.
  CONSUMABLE DESCRIPTION



  Cleaning agent R2

  500 ml

  83190417324

• Clean the bonding surfaces (1) on the vehicle and the new part with cleaning agent R1.

  Consumable

  Courtesy of BMW OF NORTH AMERICA, INC.

  Cleaning agent R1

  100 ml, Bottle

  83192211217

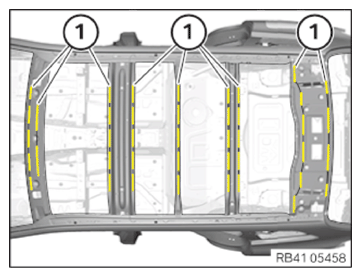

• In areas (1), apply sealant D2 similar to the series.
  CONSUMABLE DESCRIPTION



  Sealant D2

  290 ml

  83425A547B9

  Courtesy of BMW OF NORTH AMERICA, INC.

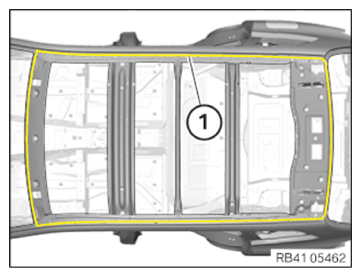

• In area (1), apply the adhesive K5.
  ADHESIVE



  Body adhesive K5

  50 ml

  83192158654

  ADHESIVE



  Body adhesive K5

  195 ml

  83195A59935

  Courtesy of BMW OF NORTH AMERICA, INC.

• With a support person, place the roof outer skin evenly and centrally on the vehicle and adjust to fit.
• Secure the roof outer skin with the screws M6, nuts and washers at the mounting holes (1) of the roof rack. Screw connections must be tightened by hand.
• Do not remove the screw connections until the adhesive has hardened.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the roof clamps (1) and fasten with the retaining strap (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lock the roof outer skin with the roof clamps (1) and the retaining strap (2) as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

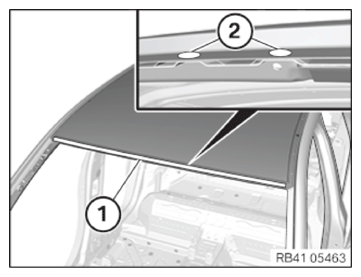

• In area (1), rivet the roof outer skin with 10 punch rivets N5.
• Install the punch rivets on suitable areas (2) only.
  CONSUMABLE DESCRIPTION



  Punch rivet N5	83192158079
  Ø 5 mm; 5 mm long

  Courtesy of BMW OF NORTH AMERICA, INC.

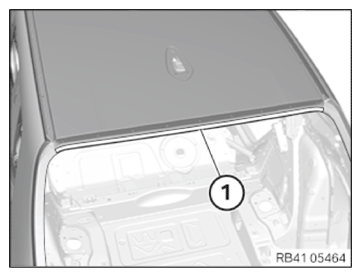

• In area (1), rivet the roof outer skin with 10 punch rivets N5.
  CONSUMABLE DESCRIPTION



  Punch rivet N5	83192158079
  Ø 5 mm; 5 mm long

  Courtesy of BMW OF NORTH AMERICA, INC.

• Level out leaked adhesive in the area (1) at all 4 corners of the roof outer skin (2) by spreading.

  Do not leave any sharp edges as this may compromise the tightness of the subsequent windshield and rear window bonding.

• Spread excess adhesive in roof trim strip channel. While doing so, the mounting surfaces of roof trim strip mounting elements may not be coated with adhesive.
• Remove excess adhesive. For that do not use any cleaning agent or solvent!

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the EMC screw

• Drill the hole with a diameter of 4.2 mm after the adhesive completely hardens.
• Screw in the EMC screw.
• Seal the EMC screw with the sealant.
  CONSUMABLE DESCRIPTION



  Sealant D1 (seam sealing)

  310 ml

  83422409985

  NOTE: Perform the steps on the left and right side.

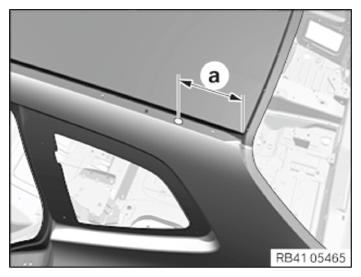

• Install an EMC screw after the adhesive has hardened.

  Dimension (a) = approximately 160 mm front of the corner of the roof outer skin

  CONSUMABLE DESCRIPTION



  Screw	83190301639
  EMC screw, SF Plus, M5x15

  Courtesy of BMW OF NORTH AMERICA, INC.

  Sealing the roof outer skin

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
• Seal the roof outer skin on both roof frames with sealant (1), in line with standard production.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
• Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
