Secure the wishbone on the top left and right on the swivel bearing
NOTE:
Perform the steps on the right and left side.
Fastening the wishbone to the top of the swivel bearing

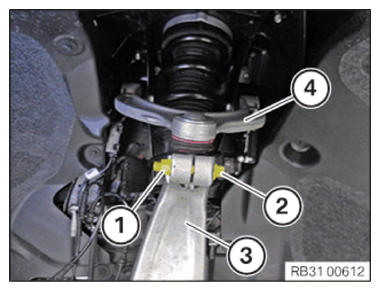

- Position the wishbone pin (4) in the bore of the swivel bearing (3) .
- Replace the screw (2)
and the nut (1)
.
Parts: Screw, nut
- Install the bolt (2) .
- Tighten the screw connection using the nut (1) .
TIGHTENING TORQUES SPECIFICATION
| Upper wishbone to swivel bearing | ||
| M10 Replace screw and nut. Tightening via nut. |
Tightening torque | 56 Nm |
