Removing mount for DME master control module support
Removing mount for DME master control module support

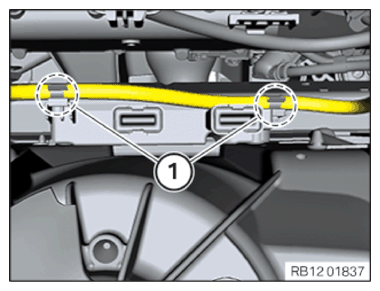

Disengage the positive battery cable on the holders
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.

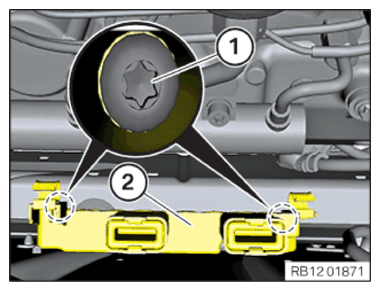

Loosen screws
(1)
.
Remove mount for DME master control module
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
