Removing the acoustic cover
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING SUSPENSION STRUT BRACE .
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
RISK OF DAMAGE
Damage to the acoustic cover/design cover .
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover .
Damage to the acoustic cover/design cover .
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover .
- Disassemble or mount the acoustic cover/design cover carefully.
- Disassemble or mount snap-lock couplings of the ball pivots one after the other.
- Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
- Use only distilled water as an auxiliary material during installation, no lubricants.

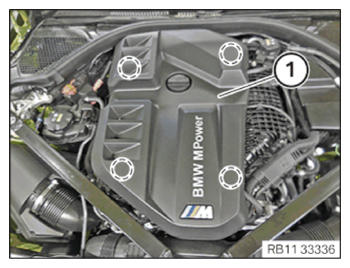

- Release the acoustic cover (1) upwards out of the rubber mounts (markings).
