Installing engine ventilation line of cylinder bank 1

• Insert the engine ventilation line (2) and turn it counter-clockwise.
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

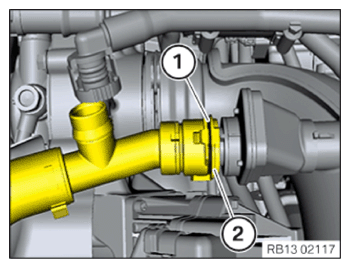

• Position engine ventilation line (2).
• Connect and lock retaining clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TANK VENTILATION LINE OF CYLINDER BANK 1 PARTIALLY .
• Refer to ATTACHING THE WIRING HARNESS SECTION FOR THE IGNITION SYSTEM OF CYLINDER BANK 1 .
• Installing cable duct at cylinder bank 1.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the conduit (2).
  • Tighten the screws (1).
  TIGHTENING TORQUES



  Cable duct
  M6x16 screw	Tightening torque	10Nm

• Refer to INSTALLING THE EXPANSION TANK FOR THE CHARGE AIR COOLER .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
