Removing and installing or replacing trim panel for left or right rear roof pillar (C-pillar) (M4 Coupe)
Necessary preliminary tasks:
- Remove COVER FOR SEAT BELT .
- Remove rear SIDE TRIM PANEL

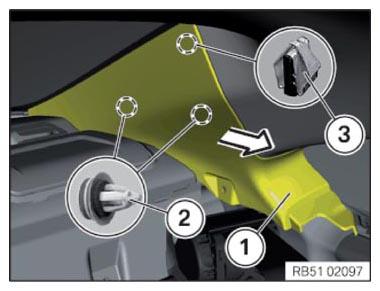

Lift out trim panel (1) from clips (2) and clamp (3) and remove in direction of arrow.
Installation note:
Replace faulty clamp (2) and clip (3).
Check that clamp (2) is securely seated in trim panel, replace if necessary.
Installation note:
Guide (1) must not be missing or damaged.
