Removing and installing/replacing stiffening plate (2016-2022)

IMPORTANT: Observe SAFETY INFORMATION for raising the vehicle

Driving without stiffening plate is not permissible!

Removal:

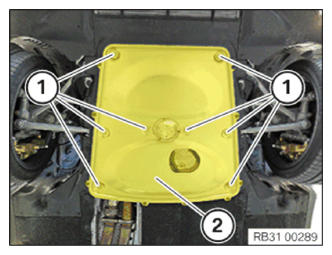

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove thrust panel (reinforcement plate) (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position stiffening plate on front axle.

Part: Replace screws (1).

Tighten down screws (1).

Tightening torque 31 10 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
