51 75 110 Removing and installing/replacing rear underbody panelling

Release screws.

Remove underbody panelling.

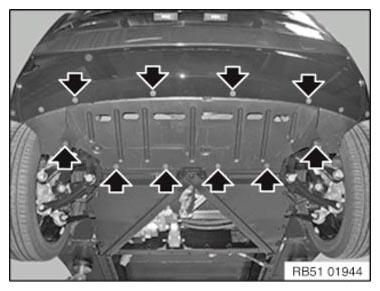

Fig 1: Locating Underbody Panelling Screws
G11145240Courtesy of BMW OF NORTH AMERICA, INC.
