61 62 115 Replacing washer jet for rear windscreen washer system

Necessary preliminary tasks:

Disconnect hose connection (1).

Remove washer jet (1) from additional brake light (2) in direction of arrow.

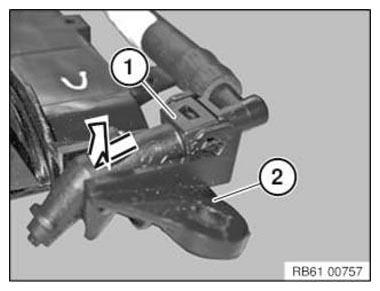

Fig 1: Removing Washer Jet From Additional Brake Light
G11148404Courtesy of BMW OF NORTH AMERICA, INC.
