51 13 174 Removing and installing (replacing) rear outer roof frame trim panel rear on left or right

Special tools required:

Necessary preliminary tasks:

Remove clamps (1).

Installation note:

Replace faulty clamps (1).

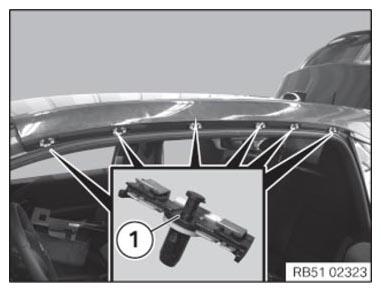

Fig 1: Identifying Rear Outer Roof Frame Trim Panel Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Release roof frame trim panel (1) from latch mechanisms (2) in direction of arrow with special tool 00 9 321 .

Installation note:

Latch mechanisms (2) must not be damaged.

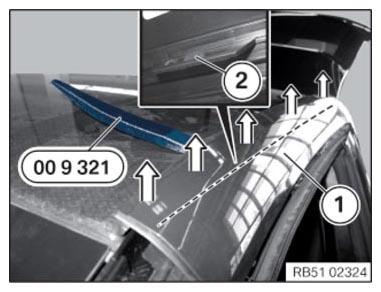

Fig 2: Releasing Roof Frame Trim Panel From Latch Mechanisms With Special Tool (00 9 321)

Courtesy of BMW OF NORTH AMERICA, INC.

Release roof frame trim panel (1) in marked area from latch mechanisms (2) in direction of arrow with special tool 00 9 321 .

Remove roof frame trim panel (1).

Installation note:

Latch mechanisms (2) must not be damaged.

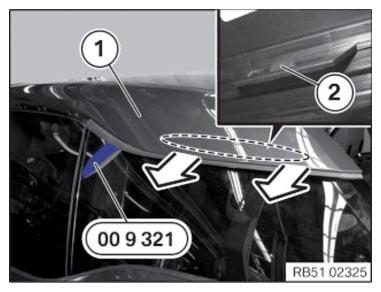

Fig 3: Releasing Roof Frame Trim Panel In Marked Area From Latch Mechanisms With Special Tool (00 9 321)

Courtesy of BMW OF NORTH AMERICA, INC.
