51 16 041 Removing and installing/replacing cover cap on left or right exterior mirror

Necessary preliminary tasks:

Press together latch mechanisms (1) and remove protective cap from the outside.

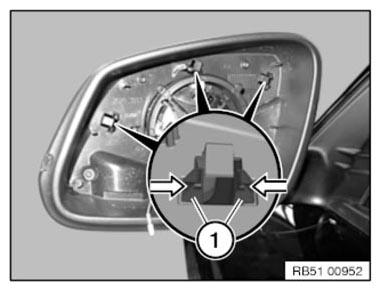

Fig 1: Pressing Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) and guides (2) on protective cap (3) must not be damaged or missing.

Fig 2: Identifying Latch Mechanisms, Guides And Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.
