51 71 041 Removing and installing/replacing rear left or right wheel arch cover

NOTE: Figure without rear wheel for purposes of clarity.

Release screws/nuts.

Feed out wheel arch cover.

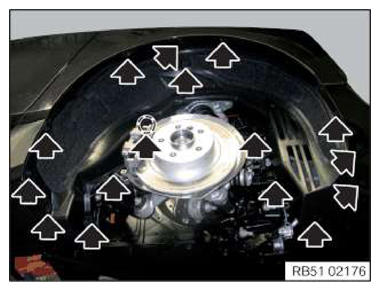

Fig 1: Locating Wheel Arch Cover Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
