51 21 300 Removing and installing or replacing window cavity cover strip on outside of left or right front door
Special tools required:
IMPORTANT:
Disassembly of the weather strip is not possible without destroying it.
Weather strip must be replaced after removal.
Observe PROCEDURE for using special tool 00 9 324 .
The NOTES ON INSTALLATION OF RUBBER WINDOW SEALS serve as the basis for this repair instruction and must be observed without fail.

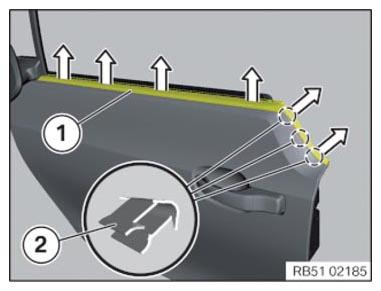

Lever out weather strip (1) with special tool 00 9 324 beginning from the back.
Remove any clamps (2) from door.

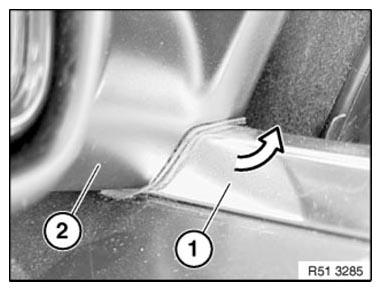

Pull out weather strip (1) from exterior mirror (2) in direction of arrow.
Installation note:
Moisten weather strip (1) before installation with the approved LUBRICANT .
