41 35 108 Removing And Installing Right Rear Side Panel
WARNING:
High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:
- DISCONNECT HIGH-VOLTAGE SYSTEM FROM POWER .
- Observe SAFETY INFORMATION for handling electric vehicles.
NOTE:
Read contents of BODY, GENERAL .
Observe procedures for REPAIR STAGE 1 .
Observe BODY GAP DIMENSIONS .
IMPORTANT:
Do not damage adjoining body components.
Necessary preliminary tasks:
- Remove rear BUMPER PANEL .

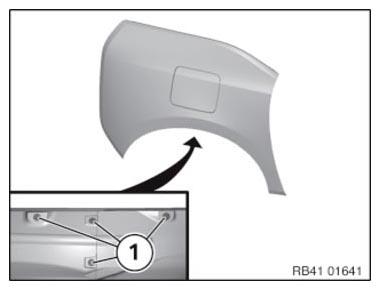

Release screws (1) and press wheel arch cover downwards.
Tightening torque 41 35 Az .

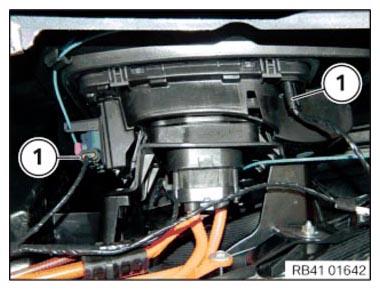

General view of wheel arch from below:
Unlock plug connections (1) and disconnect.

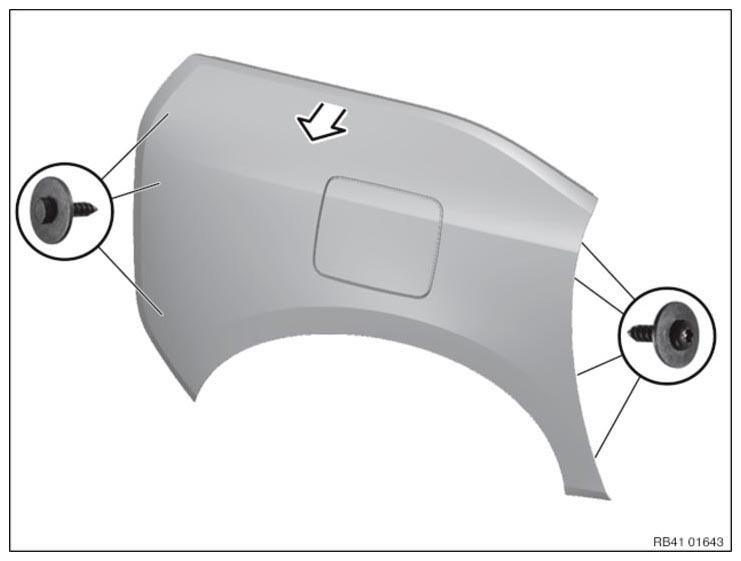

Release screws.
Unclip top side panel in direction of arrow and remove.
Tightening torque 41 35 2AZ .
