51 76 031 Removing and installing/replacing front and rear gasket of engine compartment lid

Front gasket:

Release gasket (1) at clips (2).

Installation note:

Replace faulty clips (2).

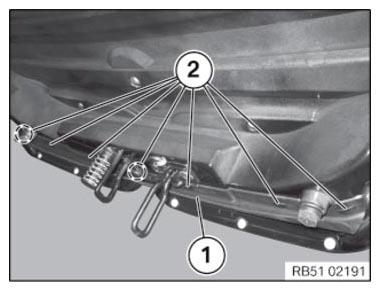

Fig 1: Identifying Front Gasket And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Rear gasket:

Release gasket (1) at clips (2).

Installation note:

Replace faulty clips (2).

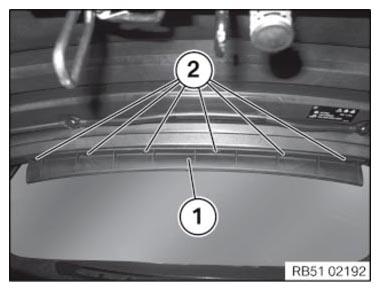

Fig 2: Identifying Rear Gasket And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
