51 46 003 Removing and installing/replacing trim panel for storage shelf

Open tailgate.

Release holding straps (1) on left and right.

Pull storage shelf (3) out of guides (2).

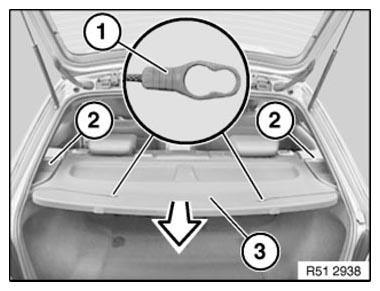

Fig 1: Pulling Storage Shelf Out Of Guides
G11147203Courtesy of BMW OF NORTH AMERICA, INC.
