51 16... Removing and installing/replacing trim on left or right exterior mirror

Fold in exterior mirror.

Insert suitable screwdriver (1) in groove between sealing lip and mirror base.

Release latch mechanism (2) with screwdriver (1).

Slip off trim (3) downwards.

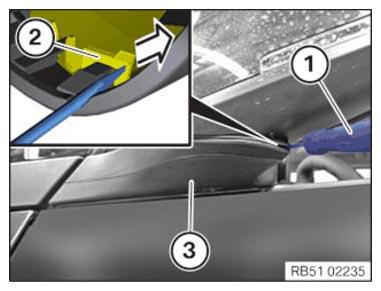

Fig 1: Releasing Latch Mechanism With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanism (1) and guide (2) on trim (3) must not be damaged or missing.

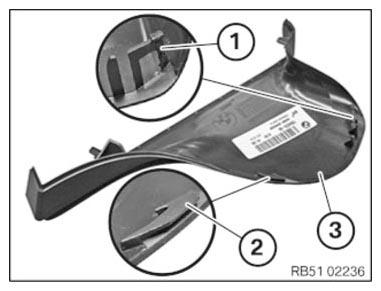

Fig 2: Identifying Latch Mechanism, Guide And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Slip on trim (1) upwards from below.

Slip on trim (1) with guide (2) first, then clip in latch mechanism in area (3).

Ensure guide (2) is correctly seated.

Ensure proper fit of latch mechanism in area (3).

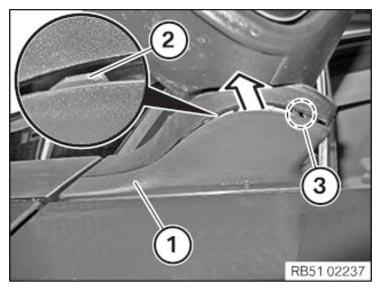

Fig 3: Installing Guide

Courtesy of BMW OF NORTH AMERICA, INC.
