51 45... Replace storage net on instrument panel trim, bottom center

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove INSTRUMENT PANEL TRIM, BOTTOM CENTER

Removal:

Unclip frame (1) in direction of arrow.

NOTE: Frame (1) can be bonded in area (A) with the storage net.

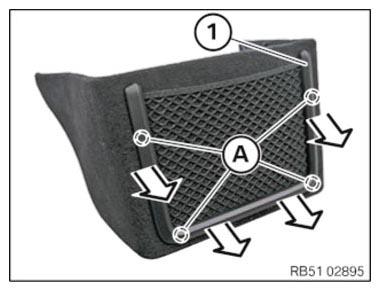

Fig 1: Removing Frame

G11147196

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove the storage net (1).

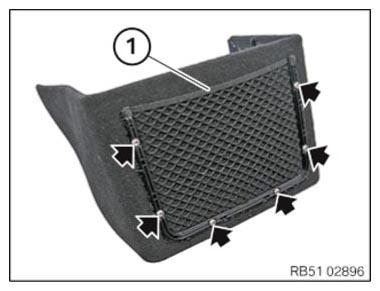

Fig 2: Identifying Storage Net With Screws

G11147197

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Secure storage net (1) with the screws.

Tightening torque 51 45 9AZ .

Fig 3: Identifying Storage Net With Screws

G11147197

Courtesy of BMW OF NORTH AMERICA, INC.

Clean adhesive area (1) on storage net (2) and corresponding counterpart on the frame.

Apply adhesive from ADHESIVE SET K6 on adhesive area (1) on storage net (2).

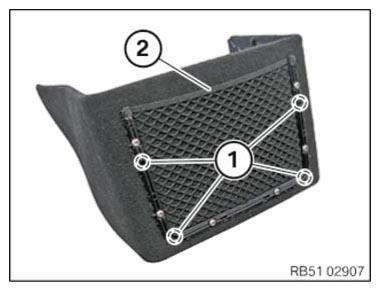

Fig 4: Identifying Adhesive Area And Storage Net

G11147199

Courtesy of BMW OF NORTH AMERICA, INC.

Clip on frame (1) on the storage net (2).

No gap shall be visible in area (A) between the frame (1) and the trim panel (3).

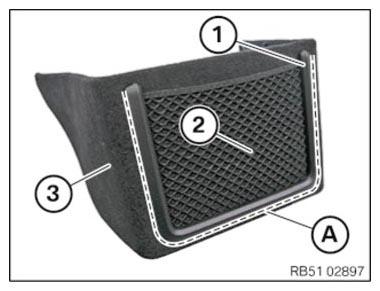

Fig 5: Identifying Trim Panel, Frame And Storage Net

G11147200

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install INSTRUMENT PANEL TRIM, BOTTOM CENTER
