51 45 195 Removing and installing/replacing instrument panel trim, bottom right

Unfasten screws (1) and take off trim (2).

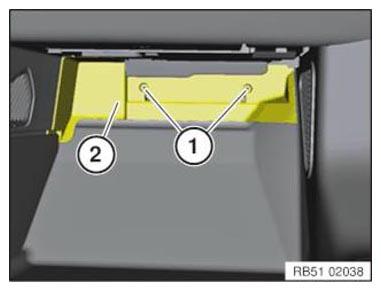

Fig 1: Identifying Instrument Panel Trim And Screws
G11147175Courtesy of BMW OF NORTH AMERICA, INC.
