51 23 201 Removing and installing/replacing release mechanism for retaining hook on engine compartment lid

Release screws (1).

Remove release mechanism (2).

Tightening torque 51 23 4AZ .

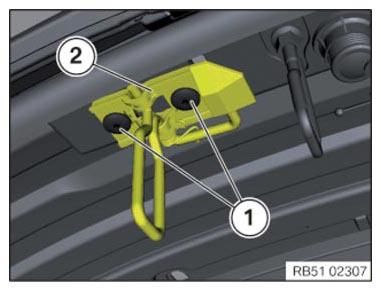

Fig 1: Identifying Mechanism And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
